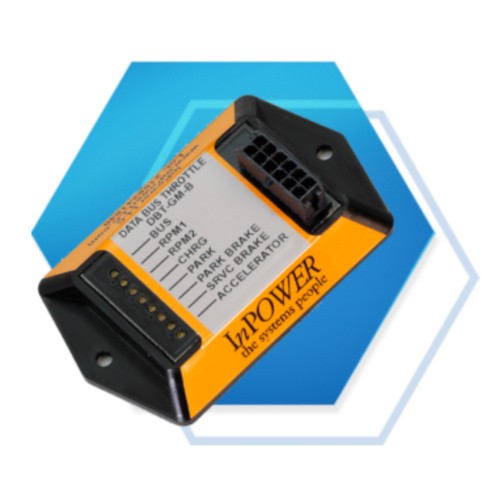

InPower DBT-GM-B Data Bus Throttle Control

Your Price: $236.67

InPower DBT-GM-B Data Bus Fast Idle Control for GM 2024-2025 2500/3500* Vehicles

InPowers DBT-GM-B Data Bus Throttle provides high idle engine RPM control for GM light-duty vehicles. It features a plug-and-play design for fast and easy installation. The control module connects to the vehicles OBD-II Global B diagnostic connector. The cable also includes blunt-cut wires for the operating mode inputs, the Park output signal, and the speed adjustment.
DBT-GM-B has two adjustable presets (RPM1 and RPM2) activated by +12V, and automatic charge protect. Note: Module will not activate unless all chassis ready conditions are satisfied.
InPower has designed the DBTs software going forward to support a wide range of the GM chassis and model year variations, and more will be added to the library as they are tested.
The DBT-GM-B throttle is reprogrammable, so that software may be updated as necessary.

Part Number: IP-DBT-GM-B

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
Downloads

InPower DBT-GM-B Data Bus Fast Idle Control for GM 2024-2025 2500/3500* Vehicles

InPower’s DBT-GMB-CP Data Bus Clutch Pump throttle control provides Engine RPM Control to prevent Overspeed of a Clutch Pump. The control module connects to the vehicle’s OBD-II diagnostic connector and provides blunt cut wires for the adjustment of RPM settings, and control of the Clutch Pump.
Note: Modules are programmed to prevent high idle unless the Chassis Ready Conditions are satisfied.
LED diagnostic indicators are provided to aid system troubleshooting. These indicators are located on the top of the module.
*To support InPower customers in selecting a throttle that is compatible with their specific chassis InPower provides a Throttle Selector Guide on their web site (www.InPowerLLC.com). Simply select the chassis and model year, and it will display the minimum software revision.
The DBT-GMB-CP throttle is reprogrammable, so that software may be updated as necessary.
