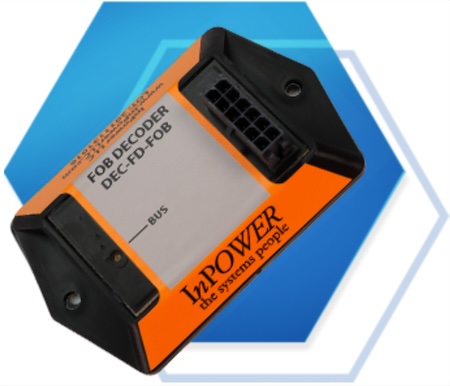

InPower DEC-FD-FOB Ford Key FOB Decoder
Zoom in on Image(s)
InPower DEC-FD-FOB Ford Key FOB Decoder
Thumbnail
Thumbnail
Thumbnail
InPower DEC-FD-FOB Ford Key FOB Decoder
Your Price:
$166.67
InPower DEC-FD-FOB Ford Key FOB Decoder
InPower’s DEC-FD-FOB Ford Key FOB Decoder provides discrete LOCK and UNLOCK signals decoded from the Ford Chassis Data Bus commanded by the OEM Key FOB. This eliminates the need for an additional Key FOB.
Ford Key FOB Decoder
Key Features:
Eliminates the need for additional “After Market” Key FOBs for lock and unlock functions
For use on 2020+ F250-F550, 2020+ Transit T150-T350, 2021+ E350-E450, and 2021+ F650-F750
Lock and unlock +12V Outputs are controlled by the OEM remote Key FOB
DEC-FD-FOB Cable connects to the rear of the Ford Gateway SDLC connector on vehicles so equipped
Low cost, fast, and easy installation
Customized functions are available
Part Number:
DEC-FD-FOB
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
Specs
In Depth
Downloads
InPower DEC-FD-FOB Ford Key FOB Decoder
InPower’s DEC-FD-FOB Ford Key FOB Decoder provides discrete LOCK and UNLOCK signals decoded from the Ford Chassis Data Bus commanded by the OEM Key FOB. This eliminates the need for an additional Key FOB.
Ford Key FOB Decoder
Key Features:
Eliminates the need for additional “After Market” Key FOBs for lock and unlock functions
For use on 2020+ F250-F550, 2020+ Transit T150-T350, 2021+ E350-E450, and 2021+ F650-F750
Lock and unlock +12V Outputs are controlled by the OEM remote Key FOB

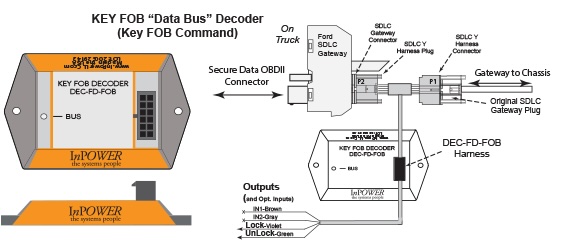

DEC-FD-FOB Cable connects to the rear of the Ford Gateway SDLC connector on vehicles so equipped
Low cost, fast, and easy installation
Customized functions are available
InPower DEC-FD-FOB Ford Key FOB Decoder
Specifications: For use on 2020+ F250-F550, 2020+ Transit T150-T350, 2021+ E350-E450, and 2021+ F650-750
Power and ground sourced from SDLC connector
Output: +12 volts @ 2.5 mA when the vehicle is in PARK
LOCK: +12VDC 400mS Pulse Output on Violet Wire
Lock Max Current: 800mA
UNLOCK: +12VDC 400mS Pulse Output on Green Wire
UnLock Max Current: 800mA

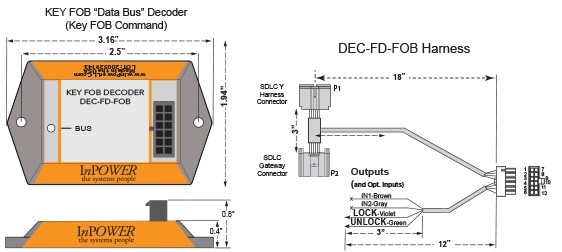

Dimensions: 3.17 L x 1.94 W x 0.8 H inches
LED Status Indicators:
BUS – Slow blink when power is applied. Turns solid when Key FOB command received. Returns to slow blink to save power.
InPower DEC-FD-FOB Ford Key FOB Decoder
InPower’s DEC-FD-FOB Ford Key FOB Decoder provides discrete LOCK and UNLOCK signals decoded from the Ford Chassis Data Bus commanded by the OEM Key FOB. This eliminates the need for an additional Key FOB.
When the LOCK button is pressed on the Ford OEM Key FOB, the data command is received by the vehicle and transmitted on the Chassis Data Bus. The DEC-FD-FOB receives this data and generates a 400mS 12V Pulse that can be used to trigger a door locking.
Likewise when the UNLOCK button is pressed on the Ford OEM Key FOB, the UNLOCK data command is received by the vehicle and transmitted on the Chassis Data Bus. The DEC-FD-FOB receives this data and generates a 400mS 12V Pulse that can be used to trigger a door unlocking.
To support our customers in selecting a decoder that is compatible with their specific chassis, please contact Summit Equipment Outlet at 877-256-8665
Download InPower DEC-FD-FOB Data Sheet
×
