InPower SS-FD23-04-C-SPC679-Module Start/Stop and High Idle Control - Module Only

InPower SS-FD23-04-C-SPC679-Module Start/Stop and High Idle Control

Your Price: $191.67

InPower SS-FD23-04-C-SPC679-MODULE Start/Stop and High Idle Control

Replacement Module only. Harness not included.
The SS-FD23-04 is a highly reliable and versatile control module that provides a clean Start/Stop interface for the Ford 2023 F250-F600. It is designed to integrate seamlessly with the Ford SEIC Signal Inputs and Outputs, eliminating common wiring errors and providing a fully integrated solution for remote Start/Stop functionality.

Part Number: IP-SS-FD23-04-C-SPC679-MODULE

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
Special Features
Specs

InPower SS-FD23-04-C-SPC679-MODULE Start/Stop and High Idle Control

Replacement Module only. Harness not included.
The SS-FD23-04 is a Super Duty control module that goes beyond Start/Stop functions to provide high idle and PTO when and how you need it. Each module has two user programmable RPM settings (RPM-STBY and RPM1) in addition to Start and Stop capabilities. The RPM1 has two different polarity control interfaces. In addition it provides decoded PARK and PARK BRAKE signals (GND TRUE).

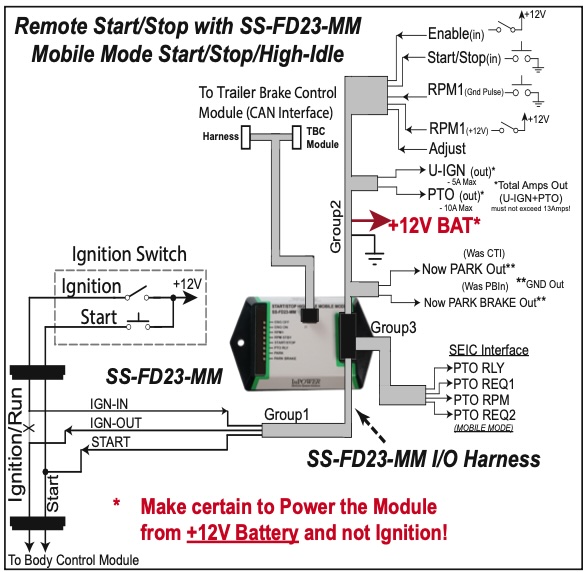

The module ships with two cables. The first cable harness connects to the SEIC Blunt Cut Wires (Group 3), the Ignition Switch Interface (Group 1) Blunt Cut Wires, and the control and power interfaces blunt cut wires (Group 2) for the SS-FD23-04. The second cable T-Harness connects to the Data Bus at the Trailer Brake Controller Module in order to decode the PARK and PARK BRAKE signals.
The SS-FD23-04 also features 8 diagnostic LEDs that aid in troubleshooting, while the lightweight and low profile design makes installation easy. In addition, the two High-Idle settings (RPM-STBY and RPM1) are user programmable from the initial factory settings and the SS-FD23-04 provides decoded PARK and PARK BRAKE discrete signals.
