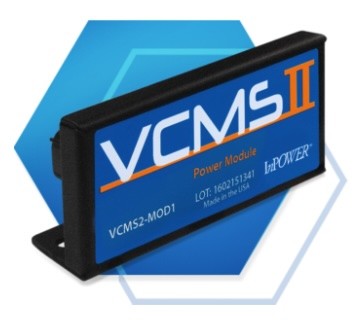

InPower VCMS2-PM1-Mod1 Power Module
Zoom in on Image(s)
InPower VCMS2-PM1-Mod1 Power Module
InPower VCMS2-PM1-Mod1 Power Module
Your Price:
$203.33
InPower VCMS2-PM1-Mod1 Power Module
The VCMS2-PM1 is an eight output, eight input control module used within the VCMS2 switching systems to control loads. Molex 8-pin connector supplies communications and the Molex 20-pin connector provides access to the eight inputs, eight outputs and four power inputs. Each of the 8 outputs are rated at 15 amps each with over-current protection. Each PM1 is rated for a maximum of 60 amps and inputs can be programmed to respond to +12V or ground signals.
Compact size with "L" bracket for mounting
60 amp maximum rating per module
Modular and expandable to use multiple power modules
Eight digital inputs provided
Custom programming to provide for output to latch, flash, time on, time off, etc.
Part Number:
IP-VCMS2-PM1-Mod1
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
InPower VCMS2-PM1-Mod1 Power Module
The VCMS2-PM1 is an eight output, eight input control module used within the VCMS2 switching systems to control loads. Molex 8-pin connector supplies communications and the Molex 20-pin connector provides access to the eight inputs, eight outputs and four power inputs. Each of the 8 outputs are rated at 15 amps each with over-current protection. Each PM1 is rated for a maximum of 60 amps and inputs can be programmed to respond to +12V or ground signals.
×
